Is a Kenmore 790-Series Wall Oven Worth Fixing? — Code by Code

Kenmore wall ovens with a 790 model prefix were built on the Frigidaire and Electrolux platform, and that fact decides most of the repair question before a technician arrives. The platform keeps a deep parts supply, the F-codes are a short and well-defined list, and several of them describe a cheap sensor rather than a dying oven. The skill is in sorting the codes that are inexpensive from the ones that point at the control board.

Code	What it reports	Safe to use?	Usually worth fixing?
F30	Temperature sensor open circuit	Won't heat, so no risk	Yes, the probe is the common cause
F31	Temperature sensor short circuit	Won't heat; do not reset and use	Yes, sensor or harness repair
F90	Door latch motor failure	Bake and broil, if only self-clean fails	Yes, if you use self-clean
F11	Shorted keypad key	Locked out until reset	Often a cleaning job first
F14	EEPROM memory fault	No cooking while it shows	Board repair, so age decides
F10	Runaway oven temperature	Do not operate	Yes, but diagnose before judging

Is a Kenmore 790-Series Wall Oven Worth Fixing?

Usually yes, because the common faults are inexpensive, the parts supply is good, and a built-in wall oven is expensive to replace. This site's guide to Kenmore ovens rates the Frigidaire 790 platform as having excellent parts availability, with repair outlook favorable under 17 years for electric ovens and under 15 for gas. A control board repair from $350 is worth doing on an oven under 12 years old, and worth weighing carefully beyond that. The wall-oven setting adds weight. A built-in unit sits in a cutout, and a replacement that is even slightly different in size means cabinet work on top of the oven. That is why the guide sets a higher repair threshold for built-in ovens than for a freestanding range. Our is it worth repairing a Kenmore oven guide is the parent of this page, and this one narrows it to the 790 codes.

Which 790-Series Codes Are Usually Cheap to Fix?

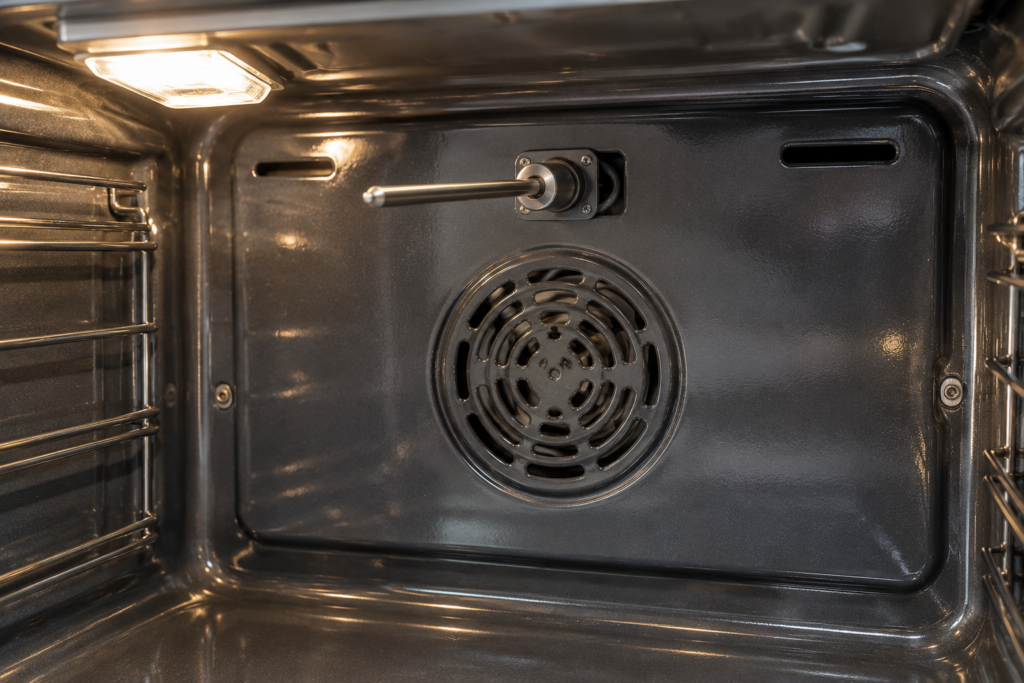

F30 and F31, the two temperature sensor codes, are the most favorable. Both leave the oven unable to heat, because the board has no sensor feedback and shuts the elements off, and both trace to the same slender probe at the upper rear of the cavity or its two-wire harness. F30 means an open circuit, usually a broken probe from years of heat cycling, and the site calls it a straightforward repair.

• F30, no preheat at all — the setpoint sits frozen on the display and the preheat tone never plays.
• F31, a reading like 999°F on the display — the sensor wires have shorted to each other or to the probe body.
• A pinched harness — a conductor squeezed between the cavity wall and a rack guide can short without the probe failing.
• Moisture in the connector — condensation can create a short that clears when the connector dries.

F90 belongs in this group for owners who do not use self-clean, since it affects only the door latch motor and the self-clean lockout. If it appears only when you start self-clean, normal baking and broiling remain safe. Our oven F30, F31 and F90 pages carry the checks.

The Codes That Point at the Control Board

F14, and sometimes F10 and F11, are the codes that lead to the electronic oven control. F14 is an EEPROM memory fault, which means the board cannot hold its settings, so calibration offsets and the clock reset themselves and cooking temperature cannot be trusted. The site advises against using the oven for any cooking while F14 shows, because inaccurate temperature control is a food-safety and fire risk.

• F14 on an older oven — the memory chip may simply have worn out from write cycles.
• F14 after a storm — a surge can corrupt the data, and a reset occasionally restores it if the chip is intact.
• F11 that does not clear with cleaning — a damaged keypad membrane, or rarely the board's key-scan circuit.
• F10, runaway temperature — a shorted bake or broil relay is the most common hardware cause, and the oven must not be run until it is found.

F10 is the one to treat with respect. It is a thermal runaway safety fault, and a shorted relay will switch the element on again at the next use. Diagnosis comes first, and the verdict on worth only follows it, because an oven that has shown F10 should not be run again to see whether it recurs. Our Kenmore oven safety guide covers the stop signs. The model prefix matters here as much as the code. A 790 number points to the Frigidaire and Electrolux platform described above, but the Elite 790.9 ovens are built on an LG platform with different parts and a different sensor code, Er F3. Before you compare any estimate with a replacement price, check which platform your oven is on, because the repair outlook, the part supply and the likely cost differ between them.

What a Diagnostic Settles Before You Decide

Several 790 codes look alike from the outside, and the worth question is only answerable once the cause is known. F30 and F31 can come from the probe, from its harness or, rarely, from the sensor input on the board, and the three have very different prices. A technician separates them by measuring the probe and the wiring, and only then looks at the board. The same applies to F11, where a sticky key and a dead membrane look the same until the panel is cleaned.

• Probe first — a broken or shorted sensor is the cheap answer to both F30 and F31.
• Harness second — a pinched or loose wire mimics a failed probe.
• Board last — it is confirmed only after the sensor and the wiring are both verified good.

Does the Age of the Oven Change the Answer?

Yes, but mostly for the board codes. This site's age and repair-cost matrix for Kenmore ovens treats sensor and element repairs as repair at almost every age, and puts the real hesitation on the control board. For a built-in wall oven the matrix stays on the side of repair longer than for a freestanding range, because replacing a built-in costs more than the oven.

• Under 8 years — always repair sensor and element faults, and repair a board.
• 8 to 16 years — repair sensors, latches and keypads, and repair a board under 12 years while evaluating an older one.
• 16 to 20 years — sensors still get repaired, and for a built-in the board is still worth repairing.
• Over 20 years — repair critical faults, and evaluate everything else against the cost of replacing a built-in oven.

Kenmore is a badge, and the model prefix tells you who built your oven. A 790 prefix points at the Frigidaire platform described here, while the Elite 790.9 series is built on an LG platform and shows Er F3 for its sensor, so check the rating plate before you match any code to this page. The fuller list is in Kenmore Elite oven fault codes. When you are ready to decide with a real number, our Kenmore oven repair service confirms the cause on site first. The final price is confirmed after the diagnosis, with a written estimate before any work begins. Schedule a visit or tell us the code and the model number.
